3. ACTION

The action specified in this part of the simple dynamics will be executed when the event defined in step 1 is triggered. The action types listed on the left side of the dialog will be executed. The properties for each type can be set right next to it.

The different types of actions are explained in the following table.

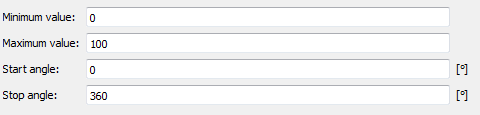

button_dyn_rotate Rotate element

Specify the min/max value and start/stop angle to rotate an element. In this case, changing the node value by 100 means rotating the element by 360° (see above).

The element rotates around the point of rotation on an element which is marked yellow. This point of rotation can be moved as desired, even outside of the element.

../../../../../../_images/dynamics_action_rotate.png
button_dyn_scale Scale element

Enter the min/max value and scale x/y (in %) to scale an element. Changing the node value will

  • scale the element up/down (in percent)

  • scale the element left/right (in percent)

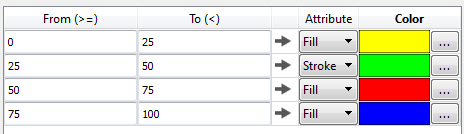

button_dyn_color Change Color

To change the color of an element, this action has to be called. Make a selection to change the color by

  • discrete values

  • discrete value ranges

  • a value range

../../../../../../_images/dynamics_action_color_discretevalueranges.png
button_dyn_visibility Change Visibility

To change the visibility of an element, this action has to be called. Choose between visible, invisible or cycling flashing (in ms). Make a selection for changing visibility

  • discrete

  • discrete value ranges

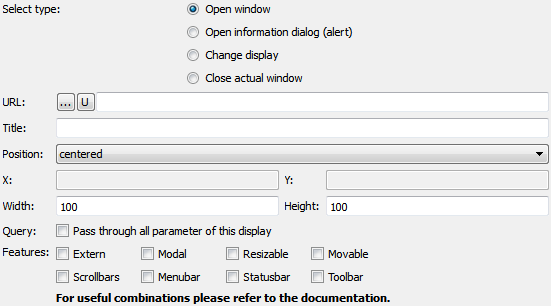

button_dyn_window Open / Close Window

Specify if a window should be opened, changed or closed.

  • To open a window, specify its position and size.

There are several features which can be set for the new window.

  • To open an information dialog, (alert) enter a desired text.

  • To change the display, set the display URL.

  • To close the current window, choose the last option.

../../../../../../_images/dynamics_action_window_openwindow.png

Features:

If the feature Extern is activated, then the window to be opened will be opened as external window, i.e. a new tab will be opened in the browser. In case Extern is deactivated, the window to be opened will be opened internally in the existing tab.

The features Modal, Resizeable and Moveable shall only be used for internal windows.

The features Scrollbars, Menubar, Statusbar and Toolbar are browser specific, i.e. these elements will only be shown in the browser if they are supported by the browser.

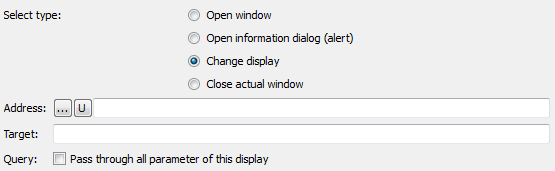

../../../../../../_images/dynamics_action_window_changedisplay.png

Target: This represents the parameter called "name" in the iframe Object Display. (If the iframe is named "myframe" the input field target should be filled with its name if it is desired to open the address in this frame).

Hint

These functions (e.g. also nesting of windows) are browser specific. Therefore, please test your parameterization with your devices and browser.

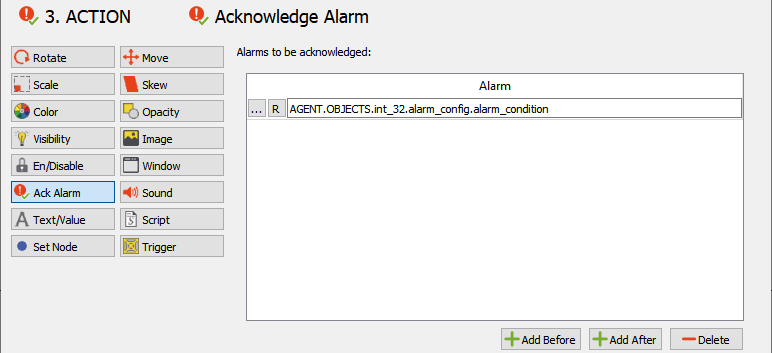

button_dyn_ackalarm Acknowledge Alarm

Specify the address of the alarm condition to be acknowledged.

../../../../../../_images/dynamics_action_ackalarm.png

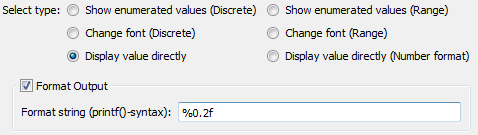

button_dyn_text_value Change Text

The "Change Text" action has the following useful functions:

  • show enumerated values (discrete)

  • show enumerated values (range)

  • change font (discrete)

  • change font (range)

  • display value directly

../../../../../../_images/dynamics_action_textvalue_formatoutput.png

Important for "Display value directly": the "Format Output" string has to be printf()-syntax conform!

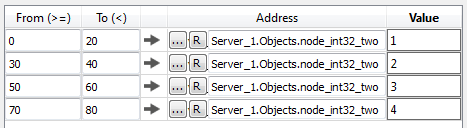

button_dyn_setnode Set address(es)

The following functions are useful to set a value to a node address:

  • take the value directly from the event

  • discrete values

  • condition-based value, discrete

  • condition-based value, range

../../../../../../_images/dynamics_action_setnode_conditionrange.png
button_dyn_move Move element

Enter the min/max value and position x/y (in %) to move an element. Changing the node value will

  • move the element up/down (in pixels)

  • move the element left/right (in pixels)

button_dyn_skew Skew element

Enter the min/max value and skew x/y (in °) to skew an element. Changing the node value will

  • skew the element up/down (in degrees)

  • skew the element left/right (in degrees)

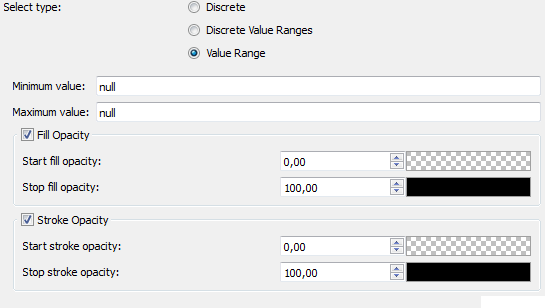

button_dyn_opacity Change Opacity

To change the opacity of an element, this action has to be called. Just as for the "Change Color" event, a selection must be made:

  • discrete values

  • discrete value ranges

  • a value range

../../../../../../_images/dynamics_action_opacity.png
button_dyn_image Set Image

To set a new image, a value (discrete value or discrete value ranges) and an image file address have to be entered.

button_dyn_enable_disable Set active / inactive

To enable or disable an element, enter a value and set it to active or inactive.

Hint

Can be used for HTML elements only, not for object displays.

button_dyn_sound Start / Stop Sound

To play a sound (once or continuously), enter an alarm-sound file address. To stop a playing sound (one specific or all playing sounds), deactivate it using the respective functions.

Hint

Apple forbids automatic playback of audio sequences without user interaction on its iOS devices:

button_dyn_script Start Script

Use this action to start a script as an action within the simple dynamics.

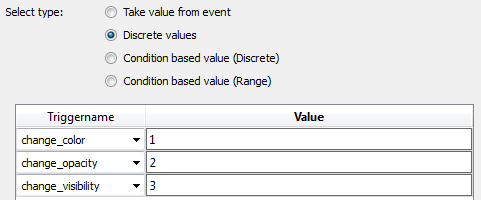

button_dyn_trigger2 Fire Trigger

You can fire a trigger with any name. All dynamizations that have this trigger name defined in the Event -> Trigger part will be triggered.

You can also pass a value on to the trigger event:

  • take the value directly from the event

  • discrete values

  • condition-based value, discrete

  • condition-based value, range

Example:

../../../../../../_images/dynamics_action_trigger.png

Hint

If the actions move, skew and rotate wanted to be used at the same time on the same item or group, the dynamization has to be applied nested.

Example:

Rotating engine moving from left to right:

<g> - Bewegung
  <Motor/> - Rotation
</g>

Rotating pointer, that can get shorter and longer:

<g> - Rotation
  <Zeiger/> - Bewegung
</g>
