SVG attributes¶

In this area attributes' values like color or height can be changed. Following you find a list of all possible attributes and their description.

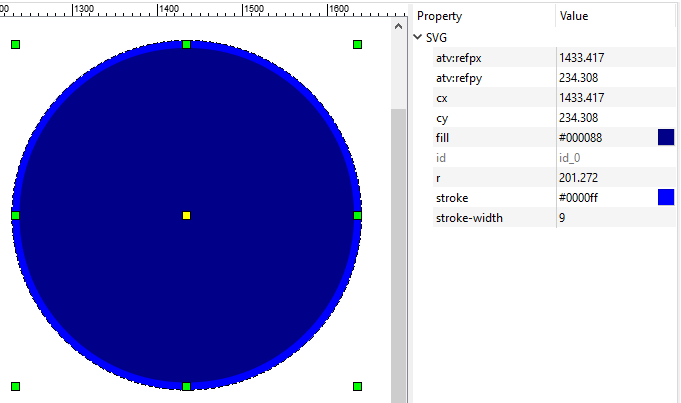

Examples with a selected circle¶

name	description
atv:bindtl	bind top left coordinate
atv:bindbr	bind bottom right coordinate
atv:refpx	x position of referencepoint
atv:refpy	y position of referencepoint
cx	center of a circle (x-coordinate)
cy	center of a circle (y-coordinate)
d	definition of a polygon
fill	fill color in HEX
font-family	font family
font-size	font size
height	height
id	unique identification of an object on the display (can be changed in the SimpleDynamics area)
points	point of a polyline
r	radius
rx	rounding x
ry	rounding y
stroke	stroke color in HEX
stroke-width	stroke width
transform	transformationmatrix (Scale+Skew+Rotate at once)
width	width
x	x position of an object (upper left corner)
x1	x position of a line's startpoint
x2	x position of a line's endpoint
xlink:href	path to a referenced display or a link to another display
y	y position of an object (upper left corner)
y1	y position of a line's startpoint
y2	y position of a line's endpoint

Binding of graphic elements to displays

By setting these attributes, objects can be bound to different positions on their parent display.

If the parent display will be referenced and transformed on another display, the objects in the parent display will behave as their binding was set.

The numbers are the percentage of width or height (of the parent display):

e.g.:

1 = 100 %

0.5 = 50 %

Attributes:
