SMTP settings¶

Add and edit an SMTP server

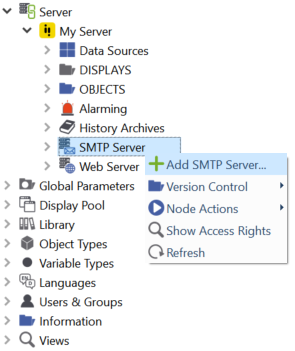

Add an SMTP Server to your project by right-clicking at SMTP Server and selecting Add SMTP Server…:

../../../../_images/add_smtp_server1.png

Adding a SMTP server¶

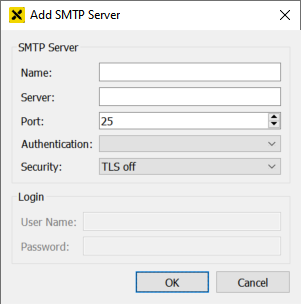

SMTP server dialog¶

Name: name of the SMTP server
Server: address of the SMTP server
Port: port of the SMTP server
Authentication: Authentication for the SMTP server (login, plain, md5)
Security: For a description of the security options see SMTPClient functions
User Name: User Name for the Connection to the SMTP server
Password: Password for the Connection to the SMTP server

Calling the "SendMail" function

To send an e-mail with a serverside script you need the "SendMail" function. To call the function add the following script to the desired serverside script:

var att = [
//Option 1: Filesystem
{
    type: SMTPClient.A_FILE,
    name: "report.pdf",
    content_type: "application/pdf",
    file_path: "C:/...",
    inline: false
},
//Option 2: Resource with address
{
    type: SMTPClient.A_DATA,
    name: "prev.png",
    content_type: "image/png",
    data_address: "SYSTEM.LIBRARY.ATVISE.RESOURCES/prev.png",
    inline: false,
    is_encoded: false
},
//Option 3: Resource with content - caution: may result in performance problems in case of large files.
{
    type: SMTPClient.A_DATA,
    name: "next.png",
    content_type: "image/png",
    data: Ua.findNode("SYSTEM.LIBRARY.ATVISE.RESOURCES/next.png").result.value,
    inline: false,
    is_encoded: false
}]

call("Mail.SendMail", {
    smtpserver: "gmail",
    from: "me",
    to: "you",
    cc: "cc",
    bcc: "bcc",
    reply_to: "reply_to",
    content_type: "text/plain",
    subject: "Hello",
    body: "Hello again",
    attachment: JSON.stringify(att)
});

The scripts expects as parameter an object with following properties:

smtpserver (String) – Name of the SMTP server (as defined in the "Add SMTP server" dialog).
from (String) – Specifies the name of the sender.
to (String) – Specifies the name of the recipient(s). Multiple recipients are separated with ';'.
cc (String, optional, default: "") – Specifies the carbon copy recipient(s). Multiple recipients are separated with ';'.
bcc (String, optional, default: "") – Specifies the blind carbon copy recipient(s). Multiple recipients are separated with ';'.
reply_to (String, optional, default: "") – Specifies the "Reply-To" field of the e-mail header.
content_type (String, optional, default: "text/plain") – Specifies the "Content-Type" field of the e-mail header.
subject (String, optional, default: "") – Specifies the subject of the mail.
body (String, optional, default: "") – Specifies the message of the mail.
attachment (String, optional, default: "") – Specifies attachment(s) for the mail. Must be a stringified JSON of an attachment object array.
