Adding scripts to nodes

The script editor is a tool for writing JavaScript code. You have the opportunity to use all JavaScript elements. You can write a script for every node. This makes working in the atvise builder very flexible and comfortable.

Using server scripting, you can extend the functionality of atvise SCADA. All internal nodes of atvise SCADA can be accessed in a server script. Server scripts can be triggered by a time, value change, alarm, etc.

A detailed description of the server scripting elements can be found at SCADA serverside scripting.

Adding a script

If you want to add a script to a node, right-click it, choose Add Script… and give the script a name. Double-clicking opens it in the script editor. In the section Server script editor you will find a detailed explanation about the script editor.

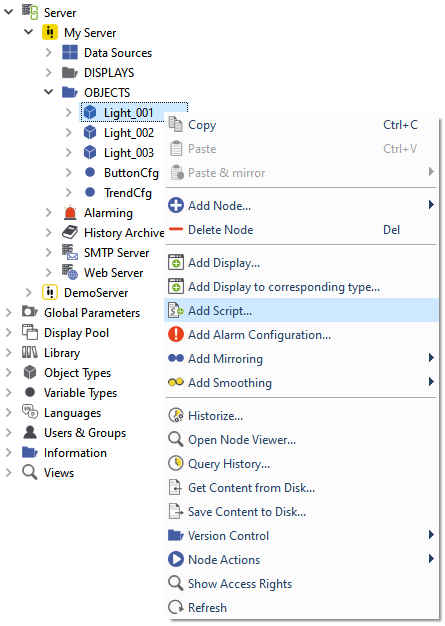

../../../../../_images/add_script.png

Adding a script to a node
