Introduction

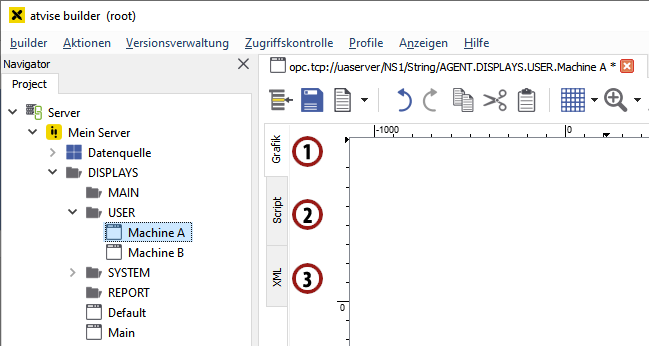

The display editor allows to design and edit displays and corresponding scripts.

../../../_images/display_editor.png

The display editor can be opened by double-clicking a display in the project tree. It consists of the graphics, code and XML editor.

1. Graphics editor

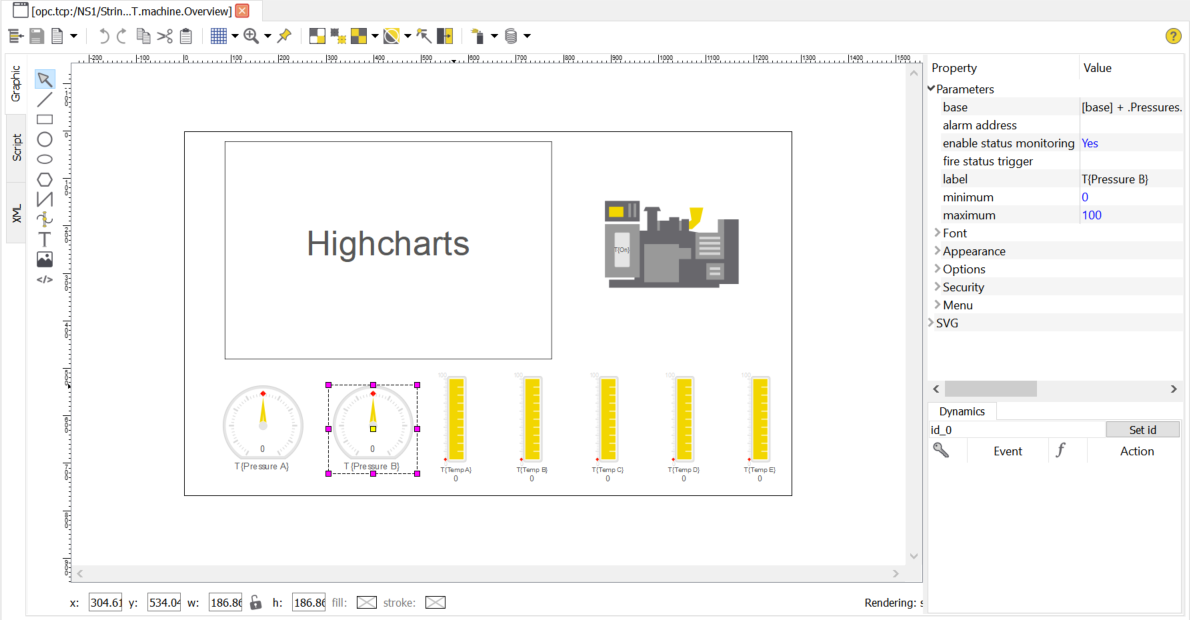

The graphics editor allows to create and edit displays as well as adding dynamizations to elements. Therefore, several tools, templates and functions are provided. Refer to chapter graphics editor for further information.

../../../_images/graphics_editor.png

2. Code editor

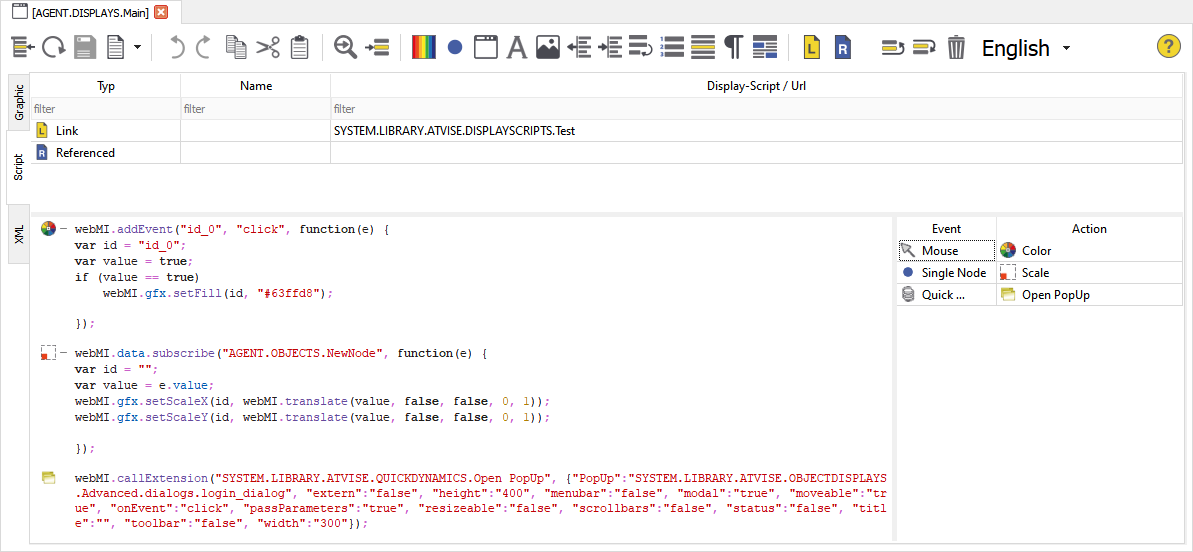

The code editor shows all available scripts of a display and its elements and allows to create and edit scripts. All scripts are organized into script blocks, depending on the respective type. Refer to chapter Code-Editor for further information.

../../../_images/code_editor.png

3. XML Editor

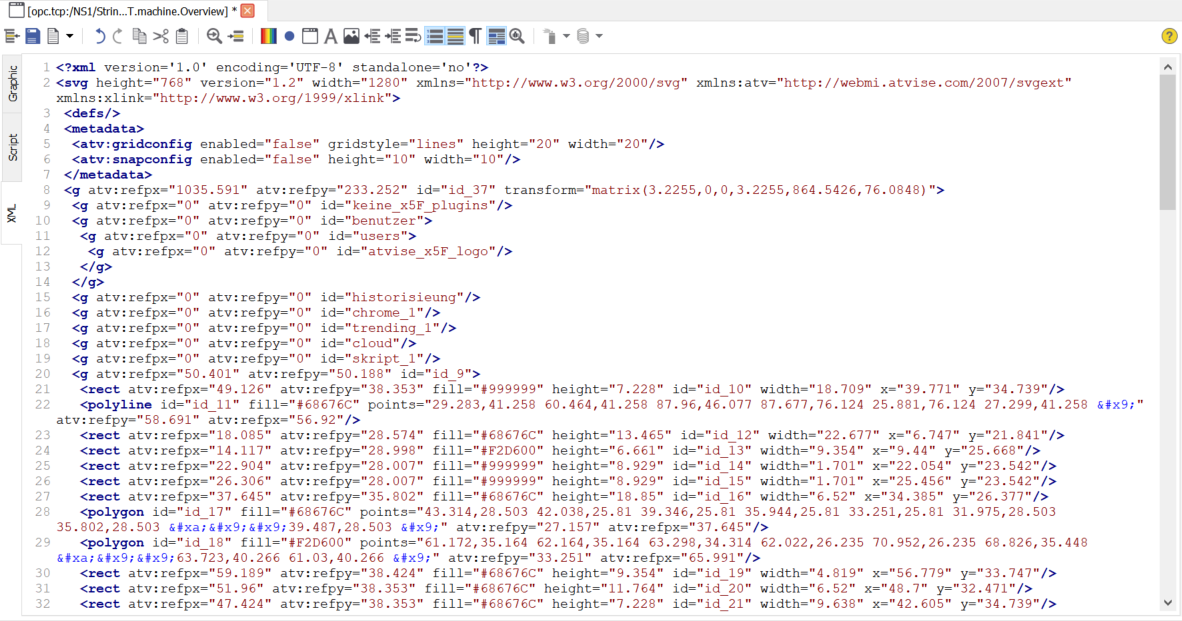

The XML editor shows the XML/SVG code of the respective display.

../../../_images/xml_editor.png
