5 Connecting to a foreign server

This section shows how to add a foreign server, browse a foreign server and how to create local data variables that are mirrored against a foreign server.

5.1 Starting the OPC UA test server

First, we have to start the OPC UA test server, which is necessary to import a data structure. This test server will be added as a foreign server in the next section.

Therefore, go to the atvise entry in the Windows start menu and choose "OPC UA testserver".

../../_images/start_opcua_server.png

Starting the OPC UA test server

5.2 Adding a foreign server

  1. Open "Servers -> My Server -> Data Sources"

  2. Right-click on "Data Sources".

  3. Choose "Add Data Source" and then "OpcUa" to open the dialog for adding a data source to the list.

  4. The test server runs on port 4841, so we type in "TestServer" as the server name and "opc.tcp://localhost:4841" as the server URL in the dialog which appears.

  5. Apply the dialog by clicking on the "OK" button to add the data source.

5.3 Browsing a foreign server

  1. Right-click on the new entry in the server list.

  2. Choose "Browse" from the menu which appears to open a browsing window for this server.

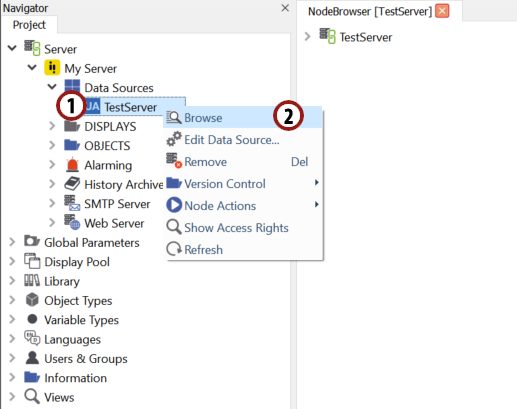

../../_images/browse_server.png

Browsing a foreign server

Hint

Browsing in the structure of a foreign server is very useful for copying browse paths and node IDs for creating mirrored variables.

5.4 Creating mirrored data variables

Now we want to display the value of a foreign variable in our visualization. It is not possible to access variables on a foreign server directly from the visualization, so we have to create a mirrored local counterpart for them. The atvise builder includes some functions for creating mirrored variables easily.

  1. Open the structure of the "TestServer" and browse into the folder "Objects".

  2. Right-click on "VariableString".

  3. Choose "Copy" from the menu which appears.

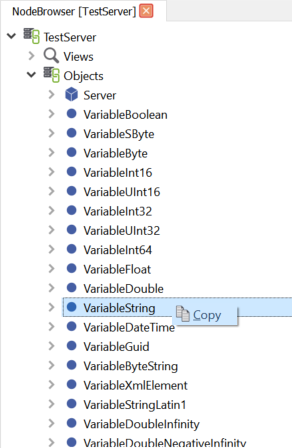

../../_images/copy_data_var.png

Copying a variable from a foreign server

  1. Right-click on "Server -> My Server -> OBJECTS".

  2. Choose "Paste & Mirror -> Input -> node" from the menu which appears. Name the variable "VariableString_input".

  3. Right-click again on "Server -> My Server -> OBJECTS" and choose "Paste & Mirror -> Output -> node" from the menu which appears. Name the variable "VariableString_output".

    Hint

    Now the value of VariableString on the "TestServer" is mirrored to the local "VariableString_input". If you change the value of "VariableString_output", this value is written to "VariableString" on the "TestServer".

  4. Display the value of "VariableString_input" directly in the visualization as described in section 4.3.

  5. Change the value of "VariableString_output". This value is written to "VariableString" on the "TestServer". After the change of "VariableString" on the other server, our local "VariableString_input" is set to this value which will be displayed in the visualization.

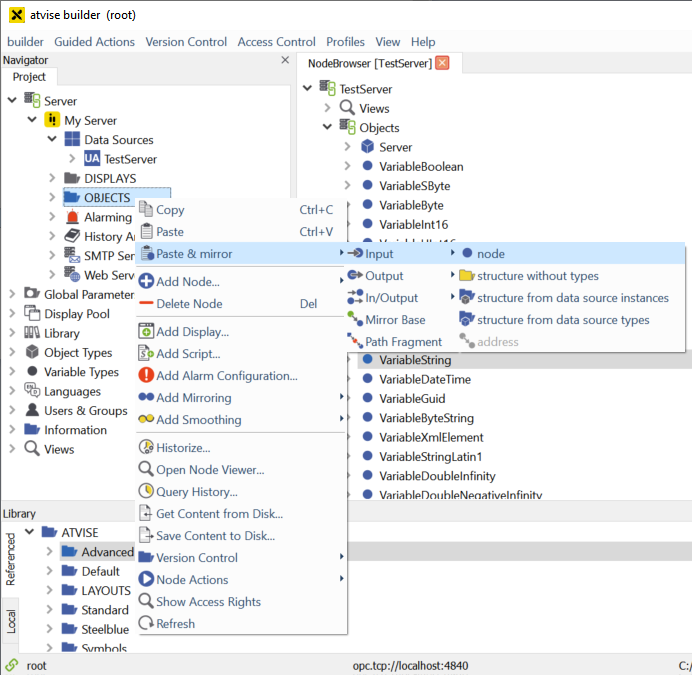

../../_images/copy_data_input.png

Pasting a variable from a foreign server
