Mirror alarms considering access control and user mapping

This chapter describes how to mirror alarms and configure access control as well as user mapping accordingly. For this use case, a second atvise server is added as data source "ds_atvise" to the project (refer to Add data sources for further information).

Requirements

A sufficient atvise license is necessary to follow this tutorial. If both atvise servers are operated on one computer, an atvise license with "maxservers >= 2" is required. Otherwise, the second atvise server must be operated on another computer with a separate atvise license.

Data source configuration

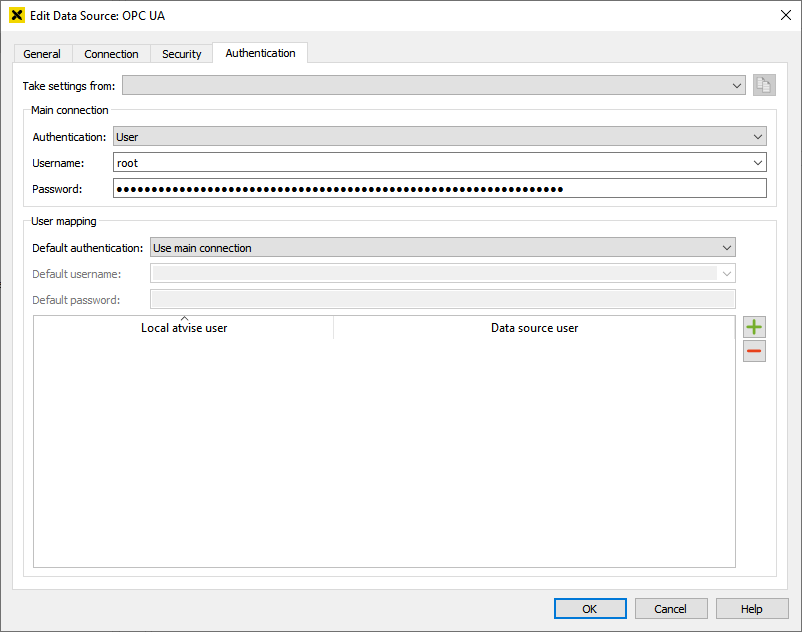

Open the "Authentication" tab in the data source settings to define the main connection to "ds_atvise". In this step, default authentication is set to Use main connection.

../../_images/mirroring_ds_settings.png

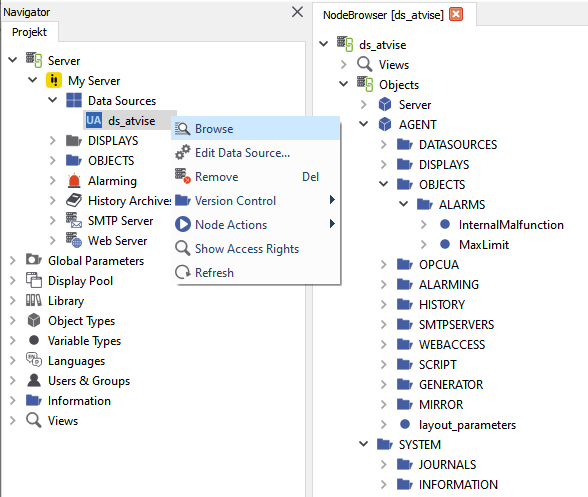

Now you can browse the data source:

../../_images/mirroring_ds_browse.png

Configuring "ds_atvise"

Nodes

The following nodes and alarm configurations are created on "ds_atvise":

  • ALARMS/InternalMalfunction – Boolean, true triggers the alarm.

  • ALARMS/MaxLimit – Int32, values > 100 trigger the alarm.

../../_images/mirroring_ds_nodes.png

Users

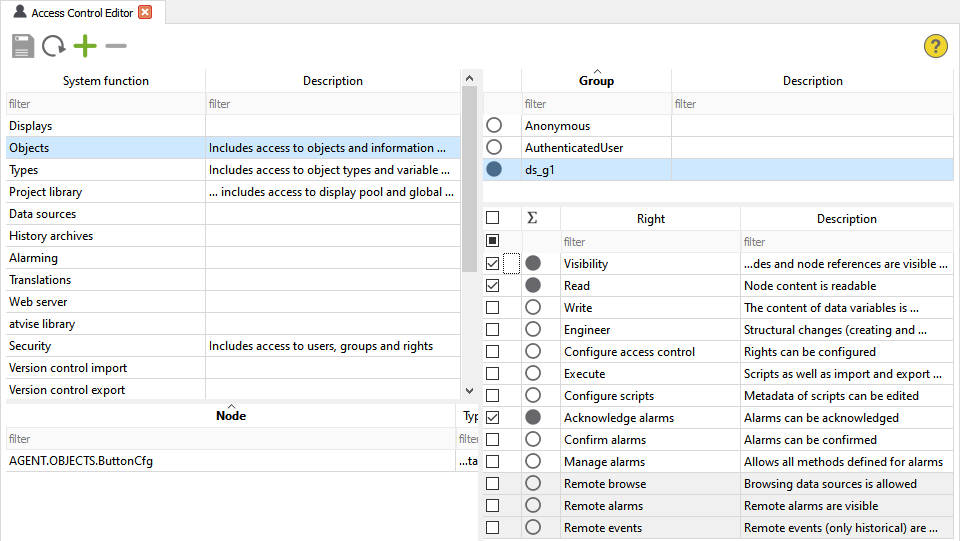

The user "ds_u1" is created and assigned to group "ds_g1". This is necessary for setting up the user mapping in a later step. The user needs the access right OPC UA server (Engineering) (see Editing user information). Open the access control settings (Access Control ‣ Assign Access Rights…) to assign the group the necessary rights for acknowledging alarms.

../../_images/mirroring_ds_ac.png

Configuring the main project

Mirroring nodes

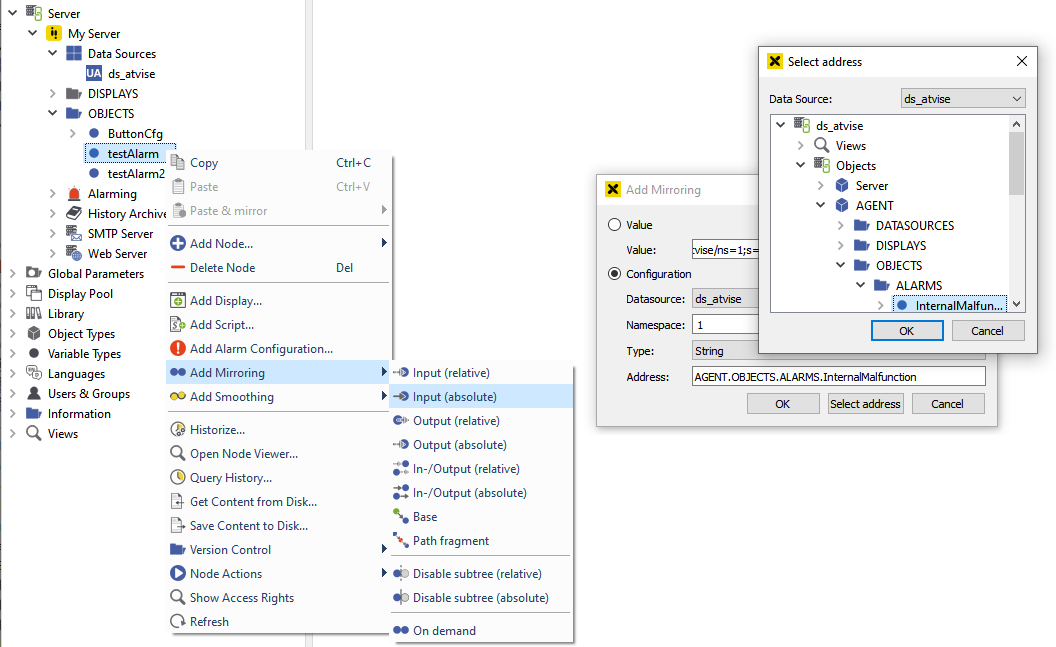

The nodes of "ds_atvise" are mirrored to nodes in the main project:

  • testAlarm – Mirroring input (absolute), Data source: ds_atvise, Namespace: 1, Type: String, Address: AGENT.OBJECTS.ALARMS.InternalMalfunction

  • testAlarm2 – Mirroring input (absolute), Data source: ds_atvise, Namespace: 1, Type: String, Address: AGENT.OBJECTS.ALARMS.MaxLimit

../../_images/mirroring_add1.png

Alarm mirrorring

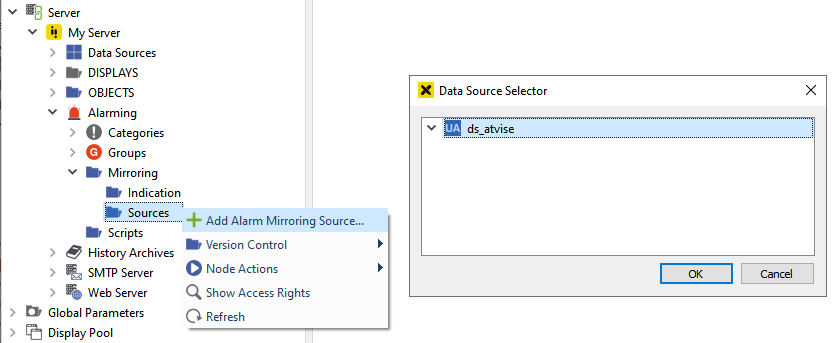

The data source "ds_atvise" must be added to Servers ‣ My Server ‣ Alarming ‣ Mirroring ‣ Sources to enable the alarm mirroring for this data source.

../../_images/mirroring_add_ds.png

Add data source

../../_images/mirroring_enable.png

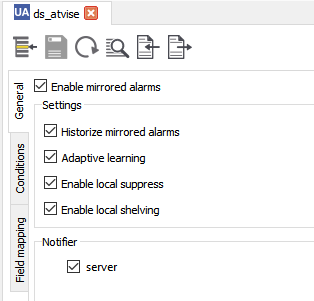

Enable alarm mirroring

Access Control

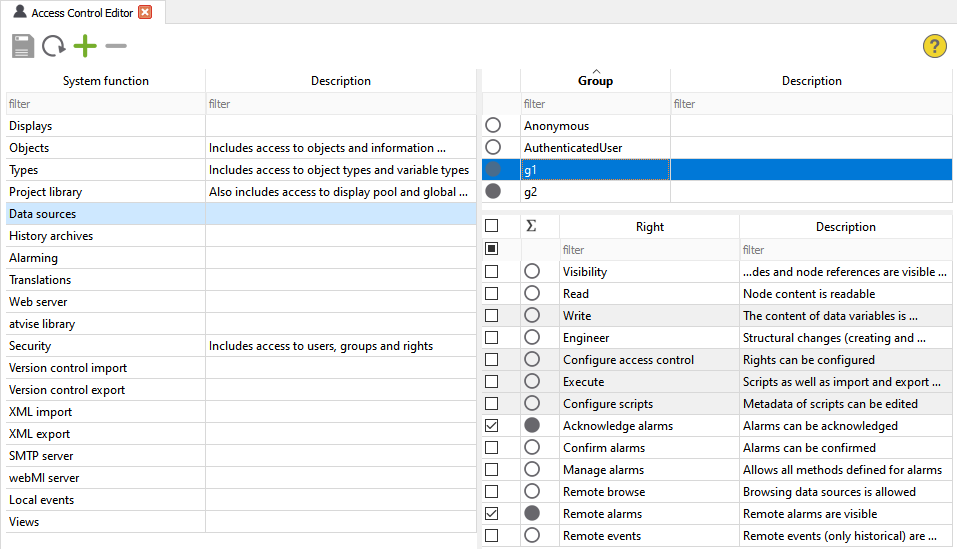

The users "u1" and "u2" are created in the main project and added to the respective group "g1" and "g2". Both users need the access right Visualization (see Editing user information). Moreover, it is necessary to set the rights to display and acknowledge mirrored alarms for users that are not project administrators:

  • System function "Data sources"

    • Group "g1": Rights "Acknowledge alarms" & "Remote Alarms"

    • Group "g2": Rights "Acknowledge alarms" & "Remote Alarms"

../../_images/mirroring_ac.png

Visualization

Open the visualization and log in with the respective user. Both users can display and acknowledge mirrored alarms of "ds_atvise" in the alarm list. Since both users access the data source via the main connection (see data source configuration at the beginning), alarms are acknowledged by the user "ds_atvise/root".

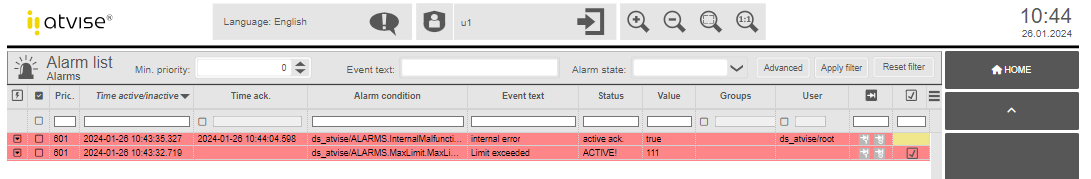

../../_images/mirroring_visu_ack1.png

Acknowledging alarms with user "u1"

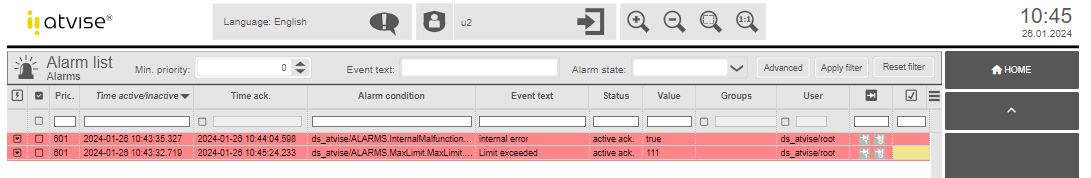

../../_images/mirroring_visu_ack2.png

Acknowledging alarms with user "u2"

User mapping

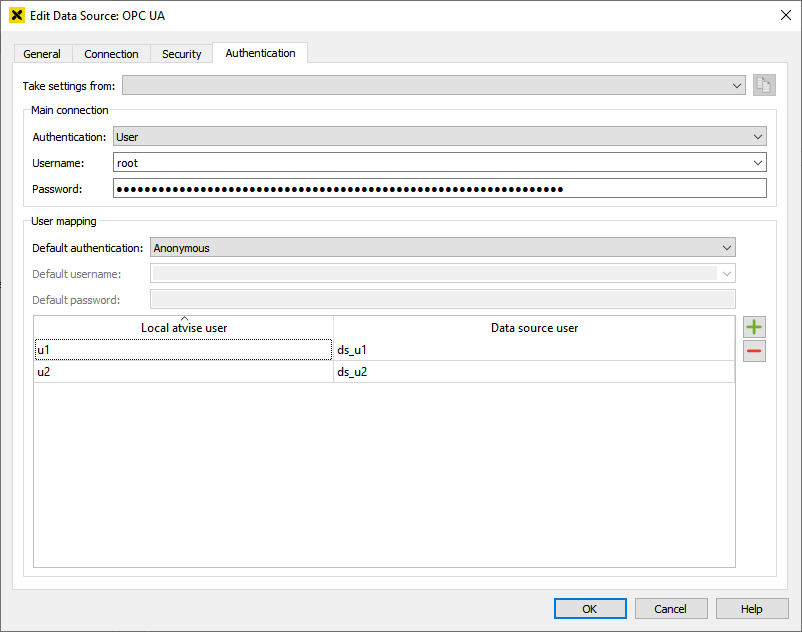

User mapping can be enabled to improve security. In this case, accessing the data source or acknowledging alarms is only possible if the user of the main project is mapped to a data source user with sufficient rights. Open the data source settings of "ds_atvise" and go to the "Authentication" tab for configuring User Mapping.

../../_images/mirroring_usermapping.png

Default authentication is set to "Anonymous". User "u1" is mapped to the data source user "ds_u1" which has sufficient rights for acknowledging alarms. User "u2" is mapped to "ds_u2". Since "ds_u2" does not exist, "u2" cannot acknowledge mirrored alarms anymore. This is shown via a corresponding notification in the visualization.

../../_images/mirroring_visu_ack_map1.png

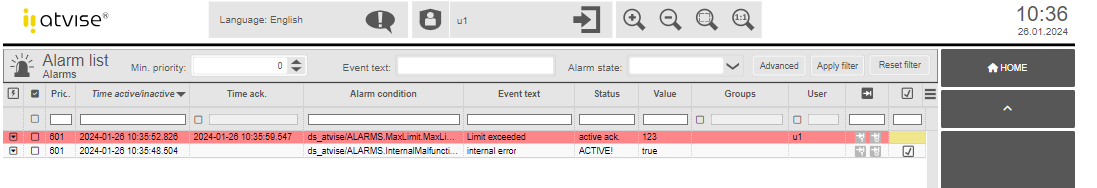

Acknowledging alarms with "u1" is possible

../../_images/mirroring_visu_ack_map2.png

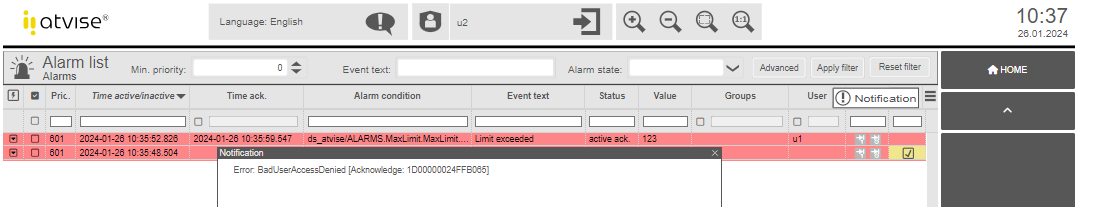

"u2" has insufficient rights for acknowledging alarms
