Introduction¶
The atvise server is automatically registered as a service by the atvise setup.
Configuring atvise service
To configure the atvise server service behavior (manual/automatic startup, log on, auto recovery, …), go to the Windows service center (Control Panel -> Administrative Tool -> Services) and right-click the "atvise server" entry -> Properties.
Starting the atvise server in console mode
You can start the atvise server console manually using the Advanced Tab of the project console or by directly launching atserver.exe.

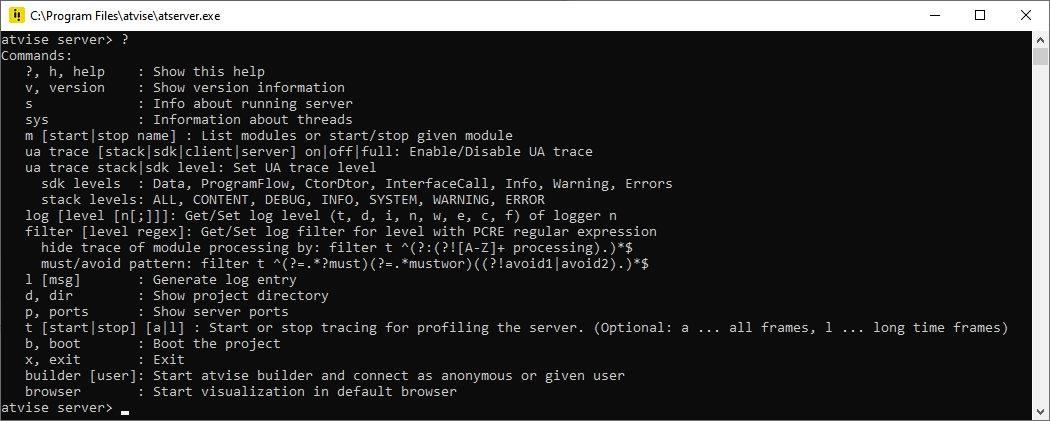

atvise server console commands
Type in a ? character followed by the enter key to list all atvise server console commands.
atvise server console commands¶
Commandline parameters
/registerService |
Registers the application as a service |
/unregisterService |
Unregisters the application as a service |
/displayName=name |
Specifies a display name for the service (only with /registerService) |
/description=text |
Specifies a description for the service (only with /registerService) |
/startup=auto|manual |
Specifies the startup mode for the service (only with /registerService) |
/help |
Displays help information |
/port=portnr |
OPC UA port number |
/http=portnr |
HTTP port number |
/https=portnr |
HTTPS port number |
/log=level |
Log level (trace, debug, info, notice, warning, error, critical, fatal) |
/boot |
Boots (starts) the project |
/proj=dir |
Project directory |
/hardwarecode |
Displays hardwarcode |
/checklicense |
Checks if there is a valid license file |
/version |
Shows the atvise server's version |
/licensefile=file |
Specifies the license file for the server |
/msg="message" |
Writes a user-specific text to the server log on server startup (User message: <User specific text>) |
Example:
atserver /boot /proj=C:/projects/demoproj
/primary=url |
The address (IP address/host name + port) of the primary server |
/role=Primary|Secondary |
Defines the role of the respective server |
/preferred=Primary|Secondary |
Specifies which server shall be preferred when both servers have the same vitality status |
/splitmode=on|off |
Activates or deactivates the split mode |
