Introduction

This page will guide you through the basic webMI procedure. A few steps are needed after you have added a webMI server. The procedure is explained in the following picture and table:

../../../../_images/webmi_procedure.png

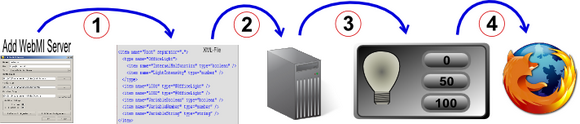

Procedure for building a webMI visualization

  1. The first step is to add a new webMI server in the atvise builder.

  2. In the second step, an XML file which includes your data structure can be imported.

  3. Create your displays and object displays with the Graphical Editor included and dynamize them using Simple dynamics.

  4. The last step is to generate the atvise visualization to the root folder of your web server.
