4 The visualization

In this section, we will take a look at the output of the engineering process in the atvise builder - the visualization.

4.1 Navigation - viewing the new display

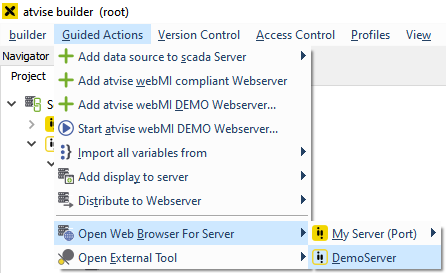

  1. Choose Guided Actions ‣ Open Web Browser For Server ‣ DemoServer from the menu bar.

  2. This will open your standard browser with the URL of the "DemoServer".

  3. Choose "TestDisplay1" from the MAIN folder in the navigation bar to view the display you have drawn in section 3.

../../_images/open_browser.png

Open the visualization

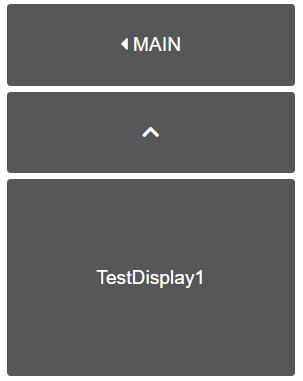

../../_images/view_in_browser.png

Viewing the new display in a web browser

Hint

You could also open the visualization of the DemoServer manually by entering http://127.0.0.1:81/ in the address bar of any browser you'd like to use.

Attention

If you encounter any problems with viewing the visualization, please clear your browser cache and reload the page (especially if you have used previous atvise versions before).

4.2 Zooming

After you have opened a display, you can try using the zooming functionality. To do this, use the visu_zoom_in, visu_zoom_out and visu_zoom_area buttons in the middle of the control panel. To show the display in its original size, click on the visu_zoom_origin button.

Try out the zooming feature to become familiar with it. For example, you could try to zoom into the circle using area zooming.

../../_images/zoom_display.png

Using the zooming functionality
